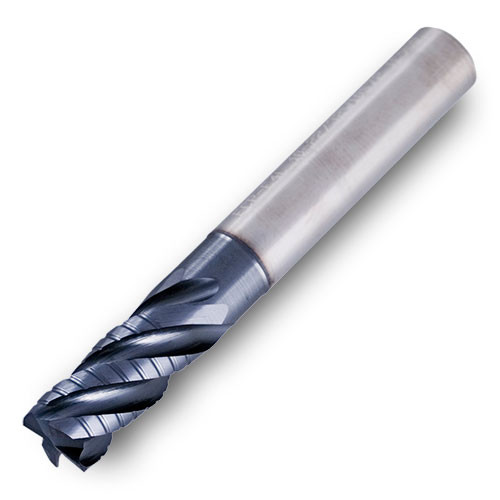

47C00614T7RM03 IN2005
SQ End Mill; 6 mm Dia. × 14 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 6 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 14 mm | Application | | Shouldering | Slotting | |
| Overall Length (OAL) | 57 mm | Corner Chamfer Width (CHW) | 0.3 mm |
| Cutting Edge Material | Carbide | Grade | IN2005 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 38 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.053
