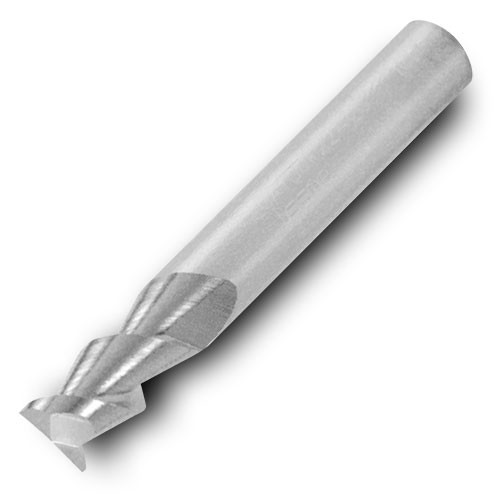

45D-4387R9RJ00 IN05S
SQ End Mill; 0.438″ Dia. × 7/8″ LOC × 0.438″ Shank Dia. × 2-3/4″ OAL ; 2 FL ; Carbide
| Cutting Diameter (DC) | 0.438″ | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 0.438″ | Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 7/8″ | Grade | IN05S |
| Overall Length (OAL) | 2-3/4″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.438″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 55 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| End Shape | Square |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.079
