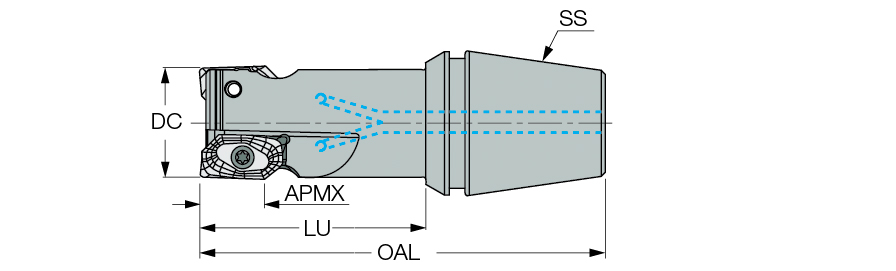

HM90 EAL-D25-L50-ER32-15
| Cutting Diameter (DC/DCX) | 0.984″ | Head Length (LH) | 1.968″ |
| Cutting Diameter (DC) | 0.984″ | Tool Type | 90° Indexable For Aluminum |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 1.968″ |
| Depth of Cut Maximum (APMX) | 0.53″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 3.543″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Endmills with integral ER collet adaptation, used for machining aluminum. | Country of Origin | IL |
| Remarks | Insert tightening torque: 53 lbf x in HM90 APCR 1605..R-P inserts with corner radii .126 and .157″ require pocket modification, corners larger than .177″ should be used only on BR tools. |
Shipping Info
Package Weight
.6900
