E45X D .31-W .62-06
Indexable End Mill; 0.312″ Dia. × 0.15″ LOC × 5/8″ Shank Dia. × 3-1/4″ OAL ; Weldon Shank ; 45 Degrees

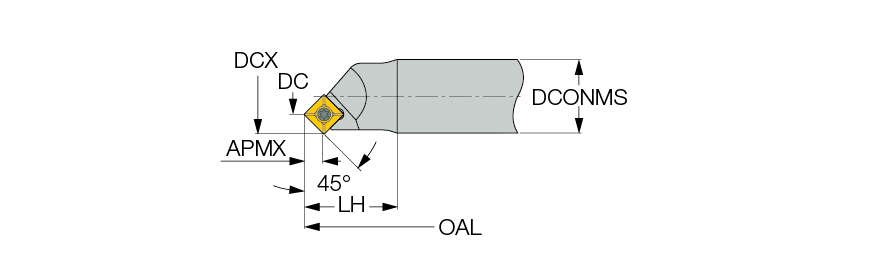

| Cutting Diameter (DC/DCX) | 0.312″ | Head Length (LH) | 1″ |
| Cutting Diameter (DC) | 0.312″ | Functional Length (LF) | 2.297″ |
| Cutting Item Count (CICT) | 1 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.15″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3-1/4″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Measurement Type | Inch |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | SOMT 060204-HQ | Cutting Diameter Maximum (DCX) | 0.63″ |
| Weight of Item (WT) | 0.24 Lbs |
Product Features
| Family Description | 45° chamfering endmills carrying X/Q/SOMT 06 inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info |
