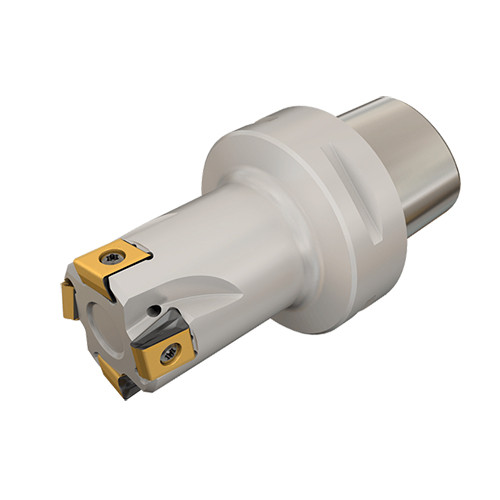

T490 ELN D40-4-L80C6-R-13
Indexable End Mill; 1.575″ Dia. × 0.492″ LOC × 2.48″ Shank Dia. × 4.646″ OAL × 2.01″ LU ; 4 FL ; CAMFIX Shank ; 90 Degrees

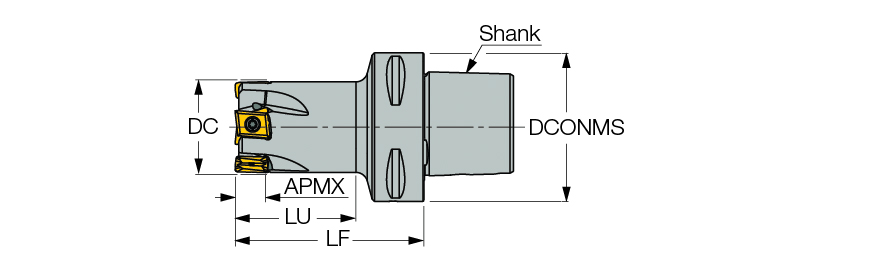

| Cutting Diameter (DC/DCX) | 1.575″ | Functional Length (LF) | 3.15″ |
| Cutting Diameter (DC) | 1.575″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 4 | Usable Length (LU) | 2.01″ |
| Depth of Cut Maximum (APMX) | 0.492″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 4.646″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | CAMFIX | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Master Insert Identification (MIID) | T490 LNMT 1306PNTR | Connection Code Machine Side (CCMS) | CAMFIX |
| Weight of Item (WT) | 2.93 Lbs |
Product Features

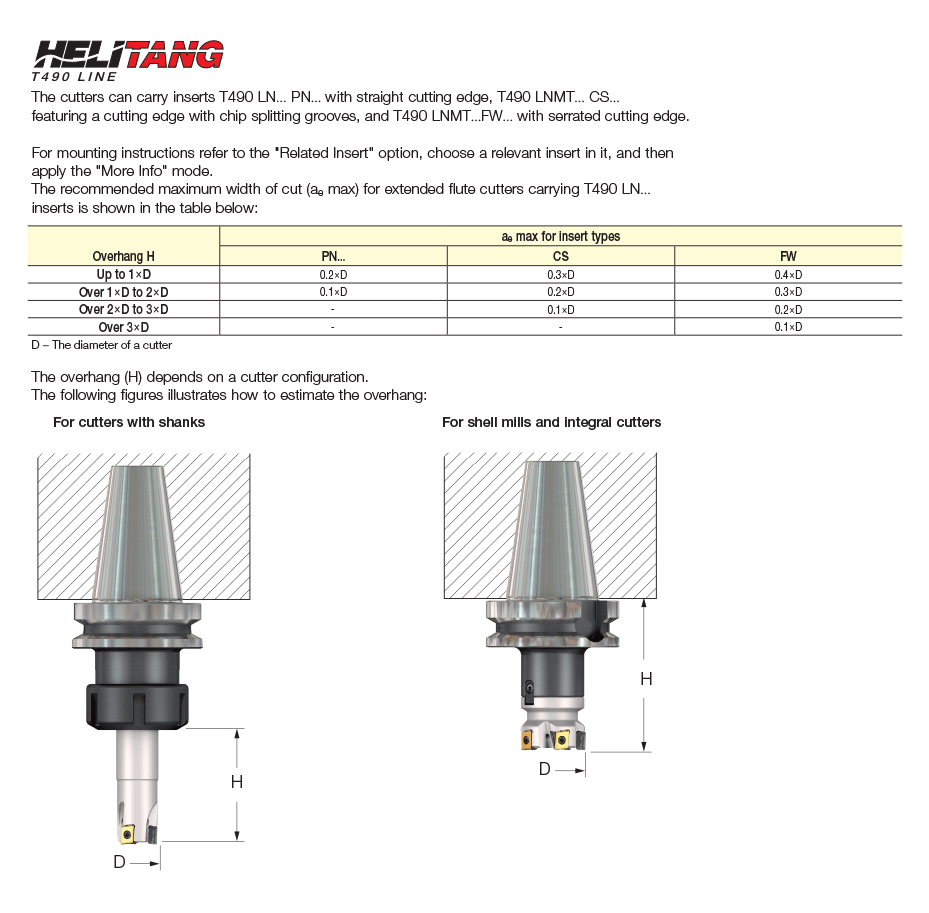

| Family Description | 90° endmills with CAMFIX shanks carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, 12.5 mm long cutting edges (HELITANG T490 Line). | Country of Origin | Israel |
Shipping Info
Package Weight
2.981
