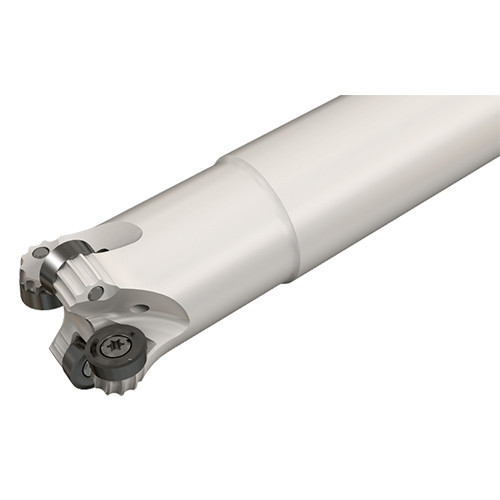

ERW D078A125-A-3-C1.00-12
Indexable End Mill; 0.78″ Dia. × 0.236″ LOC × 1″ Shank Dia. × 8″ OAL × 1.57″ LU ; Round Shank

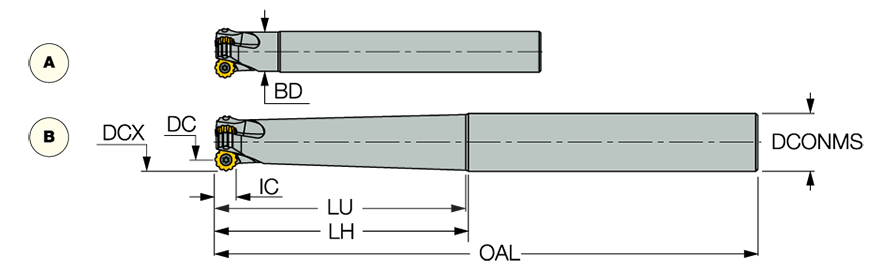

| Cutting Diameter (DC/DCX) | 0.78″ | Head Length (LH) | 1.6″ |
| Cutting Diameter (DC) | 0.78″ | Tool Type | Round corner cutters |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 1.57″ |
| Depth of Cut Maximum (APMX) | 0.236″ | Body Diameter (BD) | 0.961″ |
| Overall Length (OAL) | 8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Front Type | A |
| Ramping Angle Maximum (RMPX) | 7 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | RCCT 1206MO | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 1.57 Lbs | Cutting Diameter Maximum (DCX) | 1-1/4″ |
Product Features
| Family Description | MILLSHRED-milling cutters which can carry round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.850
