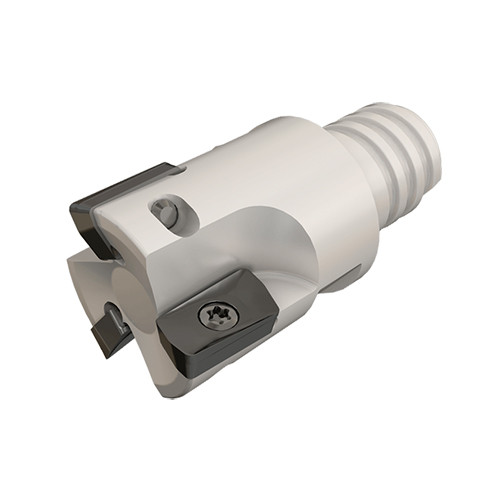

HP E90AN-D.62-4-MMT10

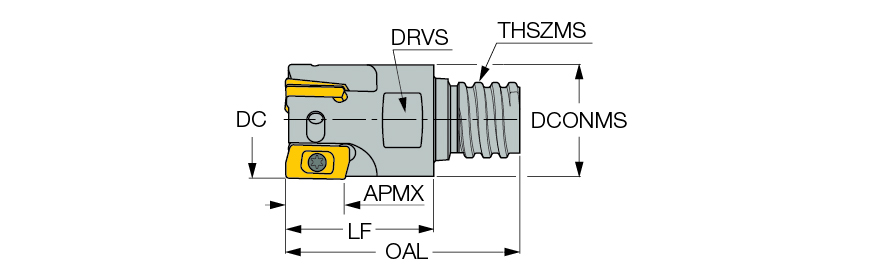

| Cutting Diameter (DC/DCX) | 5/8″ | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 5/8″ | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Cutting Item Count (CICT) | 4 | Drive Size (DRVS) | 0.512″ |
| Depth of Cut Maximum (APMX) | 0.303″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 1.21″ | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 3.2 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.58″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HP ANKT 0702 PN-R | Body Material | Steel |
| Weight of Item (WT) | 0.05 Lbs | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 3/4″ |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded adaptation carrying HELIPLUS HP ANKT 0702.. inserts. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the MULTI-MASTER threaded connection For tightening torque click on More Info |
Shipping Info
Package Weight
0.172
