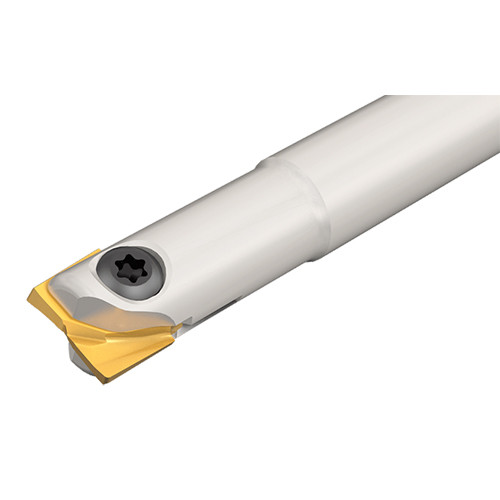

HCE D.62-A-L5.0-C.62
Indexable End Mill; 5/8″ Dia. × 0.406″ LOC × 5/8″ Shank Dia. × 5.1″ OAL ; 2 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 5/8″ | Functional Length (LF) | 5.1″ |
| Cutting Diameter (DC) | 5/8″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 1 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 0.406″ | Torque (TQ) | 69 lbfxin |
| Overall Length (OAL) | 5.1″ | Body Diameter (BD) | 0.591″ |
| Shank Type | Round | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Drill Mill | Shouldering | Slotting | Undercutting | | Front Type | A |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | HCC D.62-R.015-QF | Measurement Type | Inch |
| Weight of Item (WT) | 0.61 Lbs | Body Material | Steel |
| Head Length (LH) | 1.4″ | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Multifunction endmills that can carry ball nose, 90° and toroidal inserts. | Country of Origin | Israel |
| Remarks | For undercutting, use HTR inserts only For adaptation, click on More Info The dimensions are for HCC inserts with r=.015 |
Shipping Info
Package Weight
0.613
