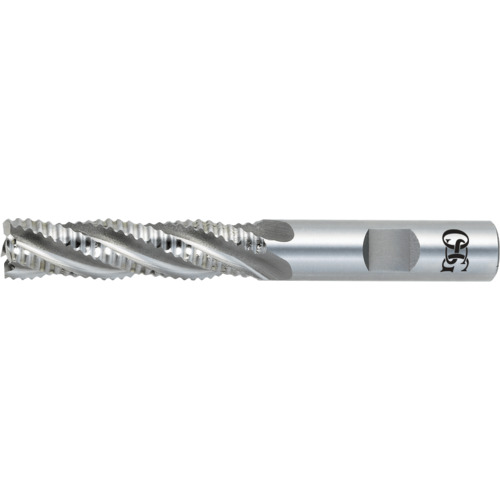

7/16″ Dia. × 3/8″ Shank × 1″ DOC × 2-11/16″ OAL, HSSCo, Uncoated, Fine, 4 Flute, Solid End Mill
SQ End Mill; 7/16″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 2-11/16″ OAL ; 4 FL ; HSSCo ; Bright ; Series 450
| Cutting Diameter (DC) | 7/16″ | Usable Length (LU) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Application | Roughing |
| Depth of Cut Maximum (APMX) | 1″ | Flute Type | Fine |
| Overall Length (OAL) | 2-11/16″ | Style | Roughing |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 0.4375″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 450 |
| Shank Type | Round |
Product Features
| Remarks | •Roughing Tooth End Mills •8% Cobalt Roughing Coarse Tooth Best for Steel up to 30 HRC • 8% Cobalt Roughing Fine Tooth Best for Material 20–45 HRC | Country of Origin | Brazil |
Shipping Info
Package Length
2.75000
Package Width
.65000
Package Weight
0.09
