VSTD16L100S10-S

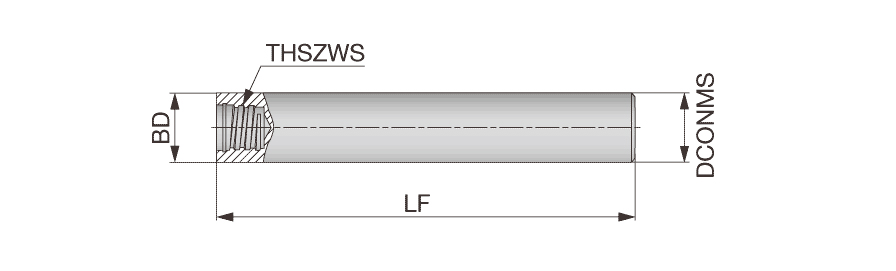

| Application | | Straight shape | | Shank Type | Round |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | S10 | Body Diameter (BD) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 100 mm | Body Material | Steel |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | TungMeister, Straight shank for VTB type T-slotting heads | Country of Origin | Japan |
| Remarks | For VSTD type shank, just VTB T slotting head is recommended. If other heads are used on the VSTD shank, the depth of cut must be smaller than the APMX in each head. The VSTD type shank does not have external clearance, so the shank may interfere with the work piece. |
Shipping Info
Package Weight
0.346
