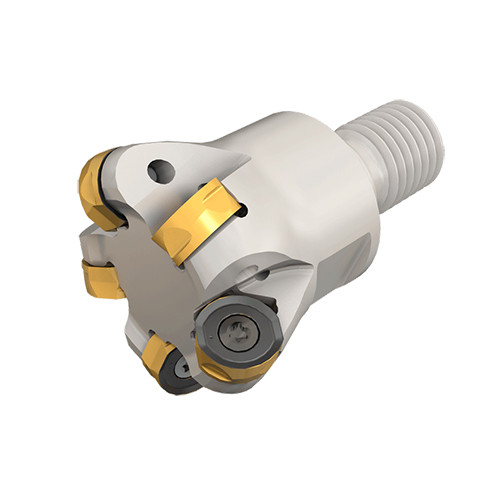

H400 ER D25-2-M12-12
Indexable End Mill; 0.512″ Dia. × 0.343″ LOC × 0.85″ Shank Dia. × 1.969″ OAL

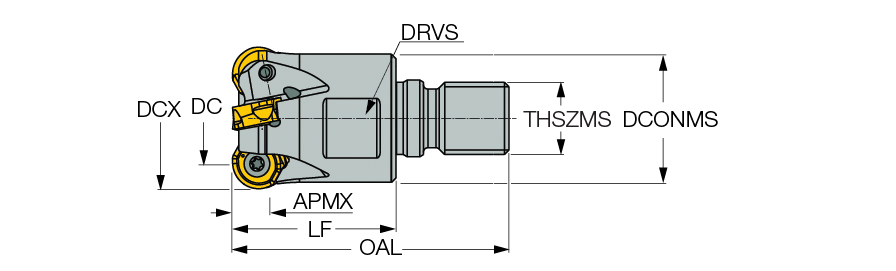

| Cutting Diameter (DC/DCX) | 0.512″ | Tool Type | Round corner cutters |
| Cutting Diameter (DC) | 0.512″ | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Item Count (CICT) | 2 | Drive Size (DRVS) | 0.748″ |
| Depth of Cut Maximum (APMX) | 0.343″ | Body Diameter (BD) | 0″ |
| Overall Length (OAL) | 1.969″ | Corner Radius (RE) | 0.2362″ |
| Ramping Angle Maximum (RMPX) | 5.6 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.85″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | H400 RNHU 1205-AX | Body Material | Steel |
| Weight of Item (WT) | 0.15 Lbs | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 1.102″ | Cutting Diameter Maximum (DCX) | 0.984″ |
Product Features
| Family Description | Endmills with FLEXFIT threaded connection carrying double-sided inserts with four radius cutting edges (HELIDO ROUND H400 LINE). | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.313
