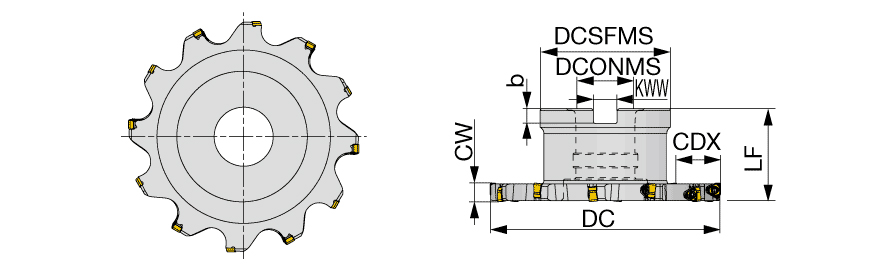

TSW06R160-10
| Cutting Diameter (DC) | 160 mm | Application | | Slot Milling | |
| Cutting Width (CW) | 10 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 29 mm | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 38.1 mm | Cutting Item Count (CICT) | 14 |
| Overall Length (OAL) | 63 mm | Functional Length (LF) | 63 mm |
| Usable Length (LU) | 3.42 kg | Master Insert Identification (MIID) | WNGU060308TN-MJ |
Product Features
| Family Description | Radial drive type slot milling cutter | Country of Origin | JAPAN |
Shipping Info
Package Weight
8.378
