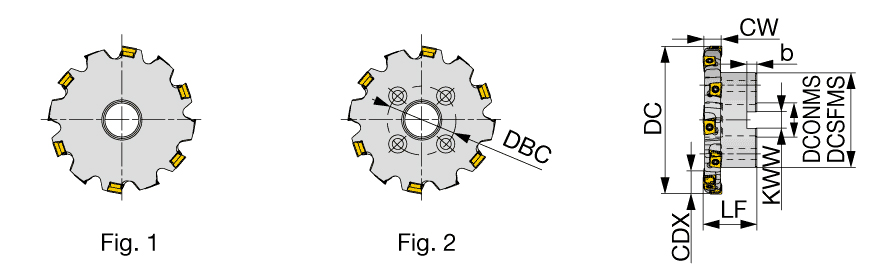

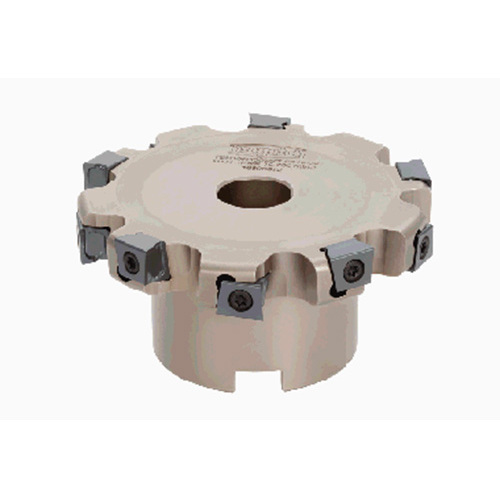

TSN12R200M40.0E19-08
| Cutting Diameter (DC) | 200 mm | Measurement Type | Metric |
| Cutting Width (CW) | 19 mm | Tool Type | Double-sided slotting cutters |
| Cutting Depth Maximum (CDX) | 55 mm | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 8 | Cutting Item Count (CICT) | 16 |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm | Master Insert Identification (MIID) | LMEU120808ZNEN-MJ |
| Application | | Slot Milling | |
Product Features
| Family Description | Radial drive type Slot milling cutter with tangentially mounted inserts | Country of Origin | USA |
Shipping Info
Package Weight
11.244
