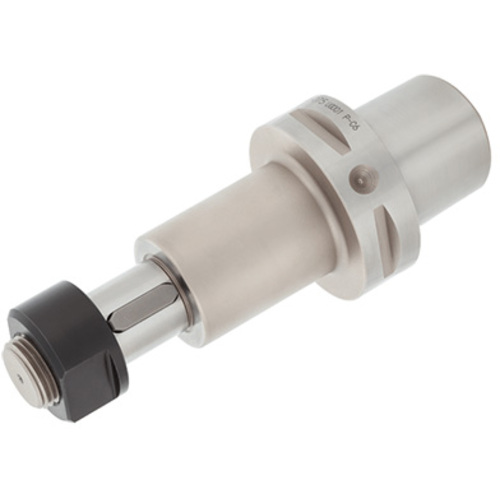

C6SCA25.4-075

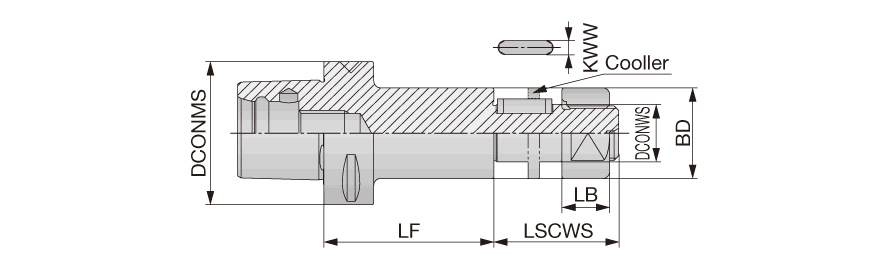

| Connection Diameter Machine Side (DCONMS) | 63 mm | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 25.4 mm | Body Material | Steel |
| Body Diameter (BD) | 40 mm | Functional Length (LF) | 75 mm |
| Body Length (LB) | 21 mm | Clamping Length Workpiece Side (LSCWS) | 55 mm |
| Application | | Face contact interface | | Key Width | 6.35 mm |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
Product Features
| Family Description | TungCap Slot milling holders | Country of Origin | Japan |
| Remarks | Collars for slot mills are not included. |
Shipping Info
Package Weight
3.66
