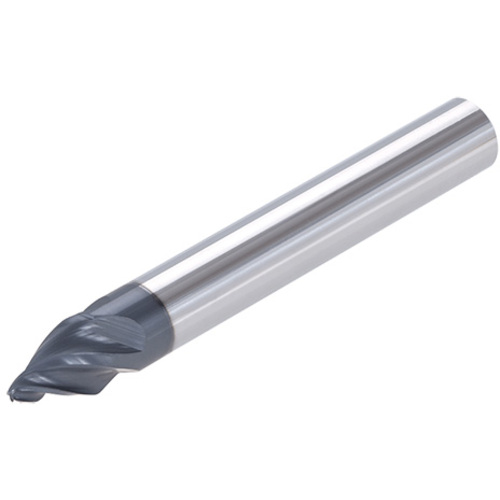

TEBO100A4-11/20.0-R250R2 AH710
Tapered End Mill; 10 mm Dia. × 11 mm LOC × 72 mm OAL × 10 mm Shank Dia. ; 4 FL ; Carbide ; TiAlN ; AH710
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Connection Diameter Machine Side (DCONMS) | 10 mm |
| Application | | Profile Milling | | Coating | TiAlN |
| Cutting Diameter (DC) | 10 mm | Grade | AH710 |
| Depth of Cut Maximum (APMX) | 11 mm | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 4 | Shank Type | Round |
| Corner Radius (RE) | 2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 72 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Family Description | Barrel, 4 flutes, semi-finishing - finishing, short edge, high productive profiling | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.287
