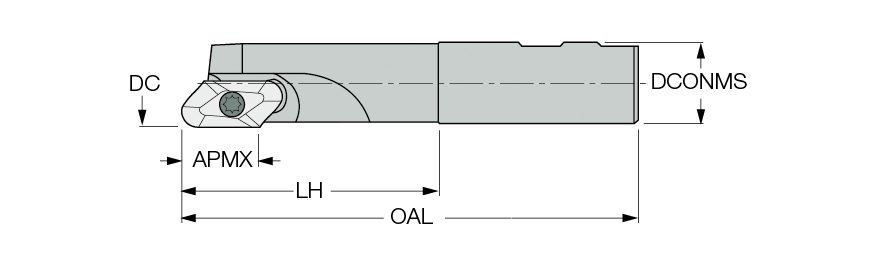

HM90 EAL-D100-W100L5.3-22
Indexable End Mill; 1″ Dia. × 0.81″ LOC × 1″ Shank Dia. × 5.3″ OAL × 3″ LU ; 4 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 3″ |
| Cutting Diameter (DC) | 1″ | Tool Type | 90° Indexable For Aluminum |
| Cutting Item Count (CICT) | 1 | Usable Length (LU) | 3″ |
| Depth of Cut Maximum (APMX) | 0.81″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 5.3″ | Coolant Supply Property (CSP) | Coolant Thru |

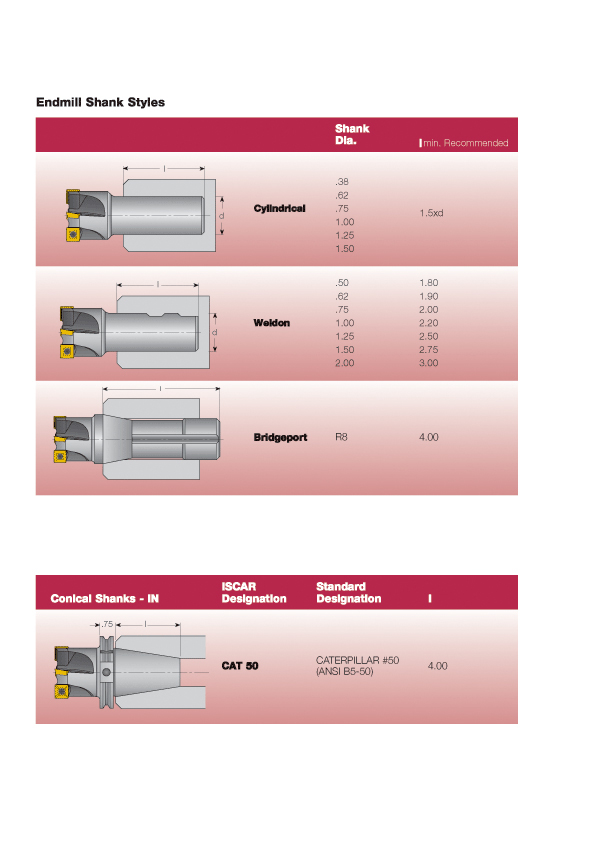

| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Long reach endmills used for machining aluminum, with HM90 APCR 2206... inserts (HELIALU). | Country of Origin | Israel |
| Remarks | DOC changes according to insert radius. ap .807 is the value for HM90 APCR 220650. For adaptation click on "More Info". |
Shipping Info
Package Weight
1.102
