C8EX-100

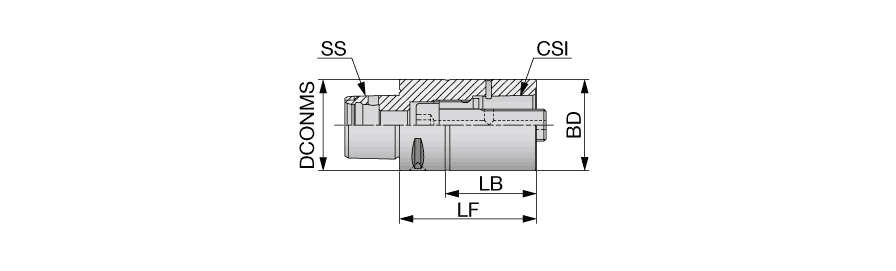

| Connection Diameter Machine Side (DCONMS) | 80 mm | Tool Type | ISO 26623 (CAMFIX, CAPTO) |
| Protruding Length (LPR) | 100 mm | Measurement Type | Metric |
| Shank Size (SS) | C8 | Body Material | Steel |
| Shank Length (LS) | 48 mm | Functional Length (LF) | 100 mm |
| Body Diameter (BD) | 80 mm | Torque (TQ) | 170 Nm |
| Application | | Face contact interface | |
Product Features
| Family Description | TungCap Extension adapters | Country of Origin | Japan |
| Remarks | Torque: Recommended torque (Nm) for clamping Applicable for 7 MPa coolant |
