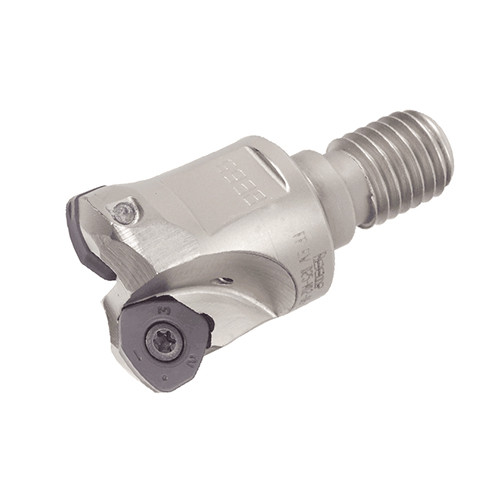

FF EW D25-M12-06-C
Indexable End Mill; 0.433″ Dia. × 0.047″ LOC × 1.85″ OAL ; 2 FL ; 13 Degrees

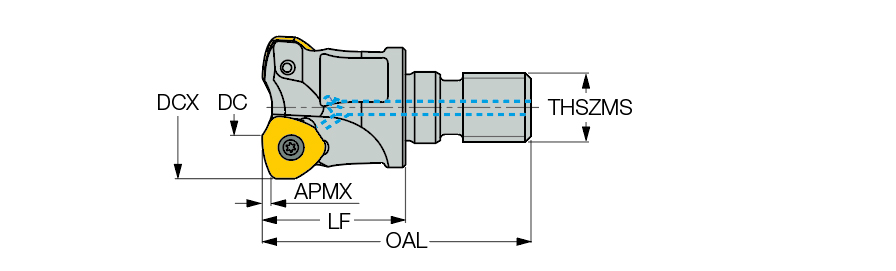

| Cutting Diameter (DC/DCX) | 0.433″ | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Diameter (DC) | 0.433″ | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 | Torque (TQ) | 17.7 lbfxin |
| Depth of Cut Maximum (APMX) | 0.047″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 1.85″ | Tool Cutting Edge Angle (KAPR) | 13 Degrees |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Inch |
| Master Insert Identification (MIID) | FF WOMT0602 | Body Material | Steel |
| Weight of Item (WT) | 0.12 Lbs | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 0.984″ | Cutting Diameter Maximum (DCX) | 0.984″ |
| Tool Type | Fast Feed Endmill |
Product Features
| Family Description | FEEDMILL, fast feed endmills with FLEXFIT threaded adaptation, using FF WOMT... inserts. Can run at very high feed rates of up to .059 ipt at small DOC, resulting in very high metal removal rates. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.258
