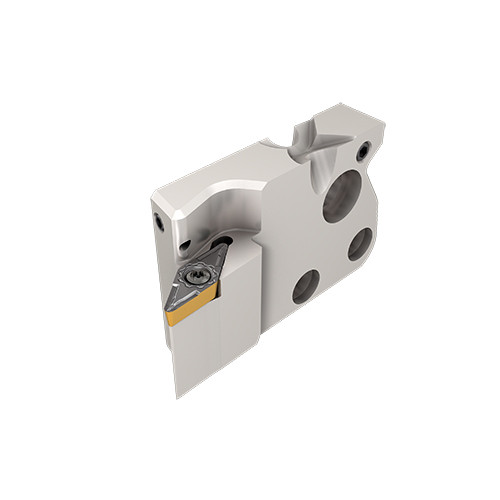

SVJCL-11-PAD-JHP
Turning Toolholder; 2.079″ OAL ; Left Hand ; Steel

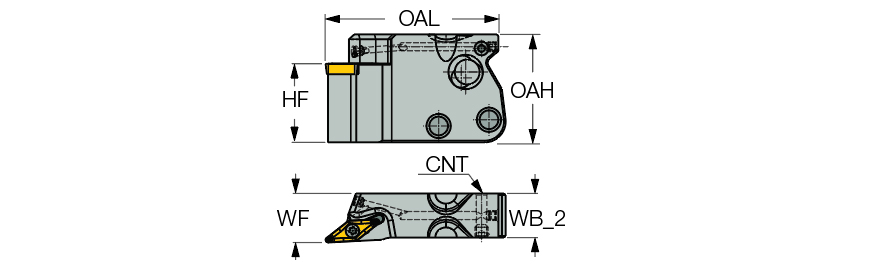

| Overall Length (OAL) | 2.079″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 0.591″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Tool Type | Adapter Turning Tools |
| Master Insert Identification (MIID) | VC..22.. | Measurement Type | Inch |
| Application | | Ext. 35° Diamond 93° Approach | |
Product Features
| Family Description | Screw Lock Adapter with High-Pressure Coolant Mounts 35° Diamond Inserts with a 7° Clearance Angle | Country of Origin | Switzerland |
Shipping Info
Package Weight
0.333
