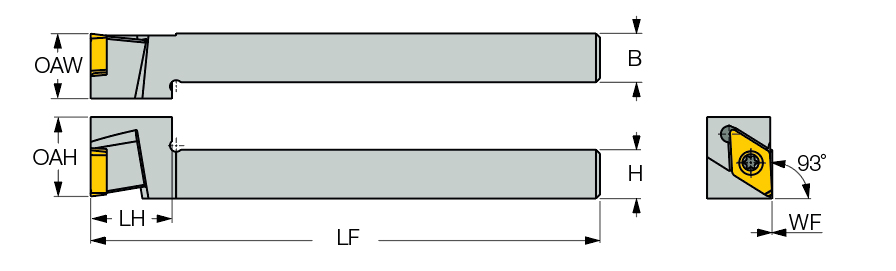

Y-SDJCR 08-3S
| Shank Height (H) | 1/2″ | Master Insert Identification (MIID) | DC..3.. |
| Shank Width (B) | 1/2″ | Application | | Ext. 55° Diamond 93° Approach | Y Axis for Swiss Type Machines | |
| Functional Length (LF) | 5″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 0.827″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 0″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Y-axis Screw lock integral tools carrying 55° rhombic inserts with 7° clearance angle for swiss-type machines. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.443
