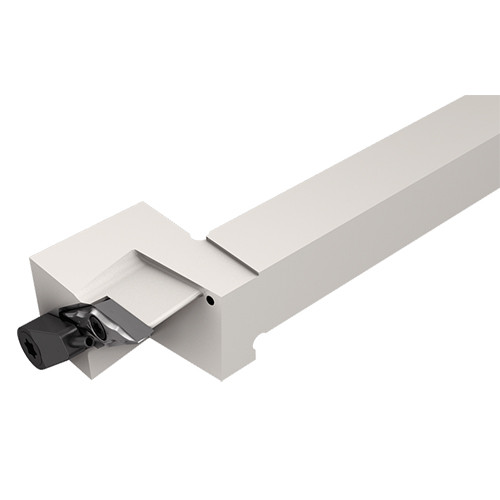

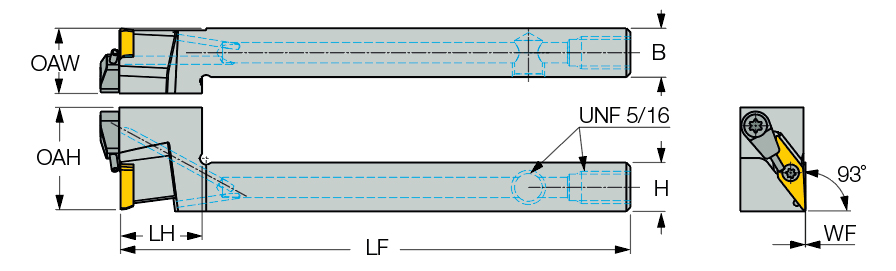

Y-SVJCR 1212K-11S-JHP
| Shank Height (H) | 12 mm | Master Insert Identification (MIID) | VCMT 1103.. |
| Shank Width (B) | 12 mm | Application | | Ext. 35° Diamond 93° Approach | Y Axis for Swiss Type Machines | |
| Functional Length (LF) | 125 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 21 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 0 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 6.35 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Y-axis screw lock JETCUT integral tools carrying 7° clearance 35° rhombic inserts for Swiss-Type machines. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.395
