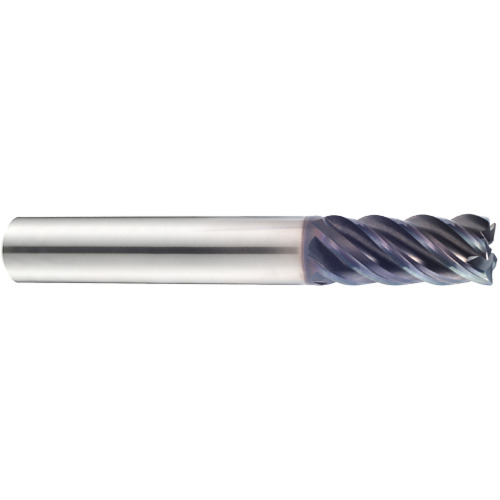

Corner Radius End Mill; 3/16″ Dia. × 3/4″ LOC × 3/16″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; Y-Coating ; Series UGMG34
SQ End Mill; 3/16″ Dia. × 3/4″ LOC × 3/16″ Shank Dia. × 2-1/2″ OAL ; 0.015″ RE ; 5 FL ; Carbide ; AlCrN ; Series UGMG34
| Cutting Diameter (DC) | 3/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3/4″ | Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.1875″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlCrN | Series/List # | UGMG34 |
| Flute Count (NOF) | 5 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | Variable | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.25
Package Width
0.625
Package Height
0.625
Package Weight
0.043
