HM390 ETC D16-2-MMT10-07
Indexable End Mill; 16 mm Dia. × 5 mm LOC × 15.2 mm Shank Dia. × 27.3 mm OAL ; 2 FL ; 90 Degrees

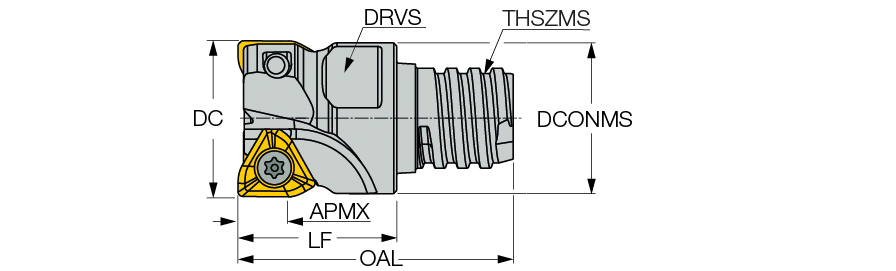

| Cutting Diameter (DC/DCX) | 16 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 16 mm | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Cutting Item Count (CICT) | 2 | Drive Size (DRVS) | 13 mm |
| Depth of Cut Maximum (APMX) | 5 mm | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 27.3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1.9 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 15.2 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | HM390 TCKT 0703PCTR | Body Material | Steel |
| Weight of Item (WT) | 0.02 Kg | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 16 mm |
Product Features
| Family Description | 90° endmills with a MULTI-MASTER threaded adaptation carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges. | Country of Origin | Israel |
| Remarks | Insert clamping screw must be lubricated every indexing. For adaptation click on More Info |
Shipping Info
Package Weight
0.159
