MTECSH06028C10 0.6ISO IC903

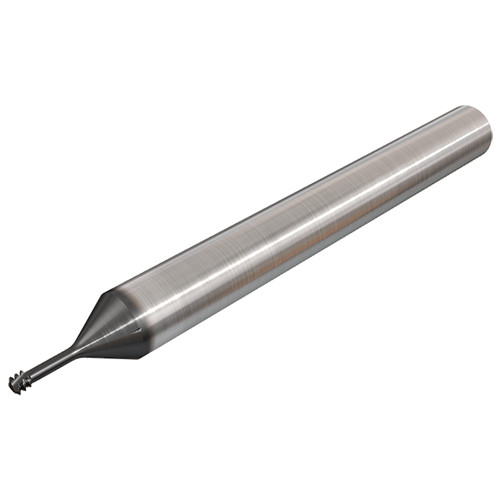

Thread Mill; M3.5 × 0.6 mm ; 6 mm Shank Dia. × 58 mm OAL ; Carbide ; AlTiN ; IC903

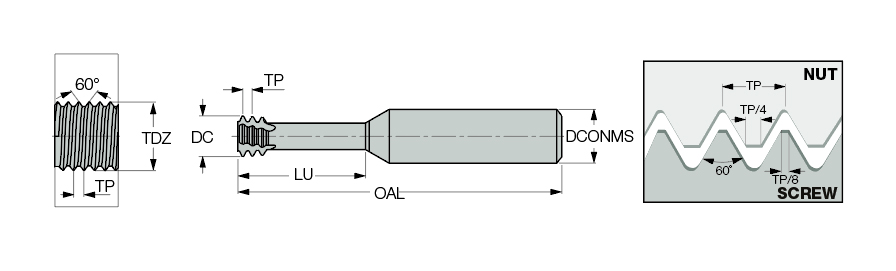

| Thread Size | M3.5 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 0.6 mm | Cutting Edge Material | Carbide |
| Thread Standard | THFT | | Usable Length (LU) | 10 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 2.75 mm | Grade | IC903 |
| Overall Length (OAL) | 58 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | AlTiN | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | |
Product Features
| Family Description | Small diameter short left-hand cut (CNC code M04) solid carbide internal ISO profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread. | Country of Origin | Israel |
Shipping Info
Package Weight
0.049
