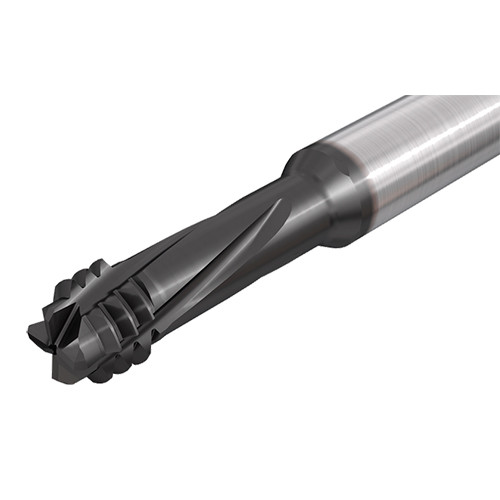

MTECD 0805C14 28UN IC908
Thread Mill; 1/4-3/8″ - 28 ; 0.315″ Shank Dia. × 2.52″ OAL ; Carbide ; TiAlN ; IC908
| Thread Size | 1/4-3/8″ | Application | | Chamfering | Drilling | Internal Thread Milling | |
| Threads per Inch (TPI) | 28 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | THFT | | Cutting Edge Material | Carbide |

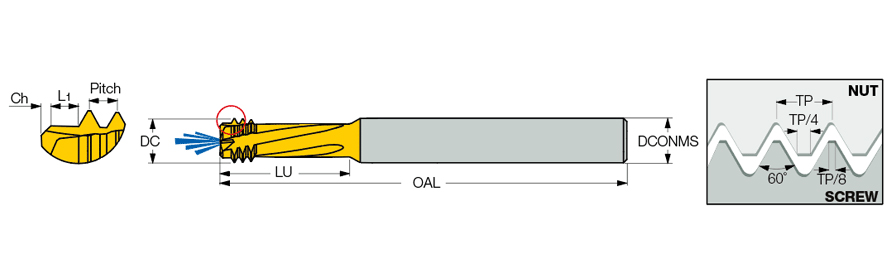

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Usable Length (LU) | 0.571″ |
| Cutting Diameter (DC) | 0.197″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.52″ | Grade | IC908 |
| Flute Count (NOF) | 3 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Corner Chamfer Width (CHW) | 0.4″ |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Small diameter short left-hand (CNC code M04) solid carbide internal UN profile drilling threading and chamfering endmills. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread. | Country of Origin | Israel |
Shipping Info
Package Weight
0.088
