| Threads per Inch (TPI) | 12 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

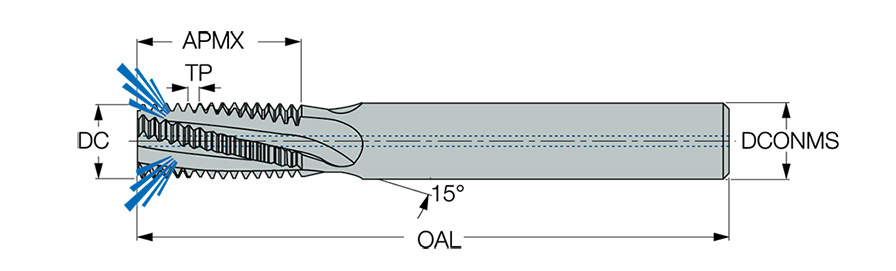

| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 8.6 mm | Measurement Type | Metric |
| Overall Length (OAL) | 73 mm | Grade | IC908 |

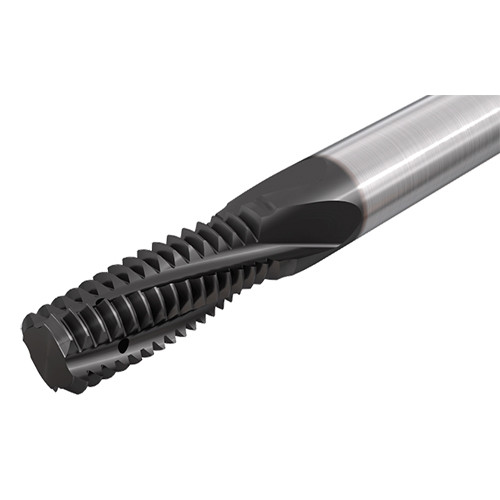

| Flute Count (NOF) | 4 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 24.4 mm |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | WH55 |
Product Features
| Family Description | Solid carbide threading endmills with coolant holes located in the flutes, used for internal or external Whitworth thread profile. | Country of Origin | Israel |
| Remarks | With internal coolant hole Internal & External tolerance: B.S.84 - Medium class |
Shipping Info
Package Weight
0.141
