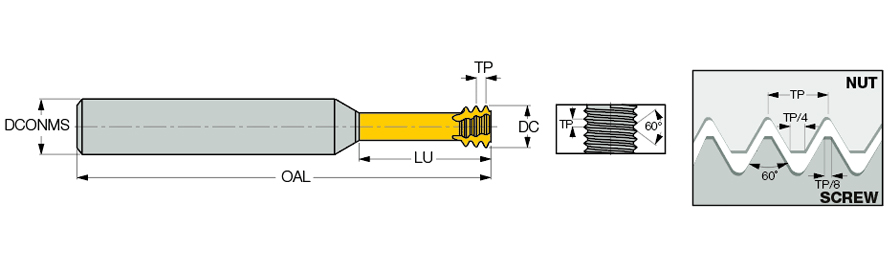

| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 0.4″ |
| Cutting Diameter (DC) | 0.1″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Grade | IC903 |
| Flute Count (NOF) | 3 | Tool Type | Solid carbide thread mills |
| Shank Type | Round | Body Material | Carbide |
| Coating | AlTiN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

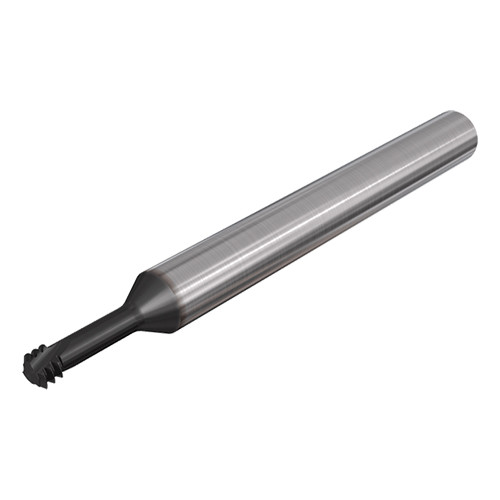

| Family Description | Small diameter short left-hand (CNC code M04) solid carbide UN profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short threading contact resulting in accurate and parallel thread. | Country of Origin | Israel |
Shipping Info
Package Weight
0.060
