MTECQ 1010D30 20UN IC908

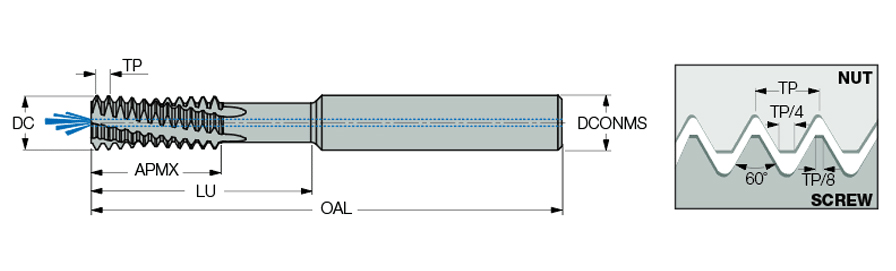

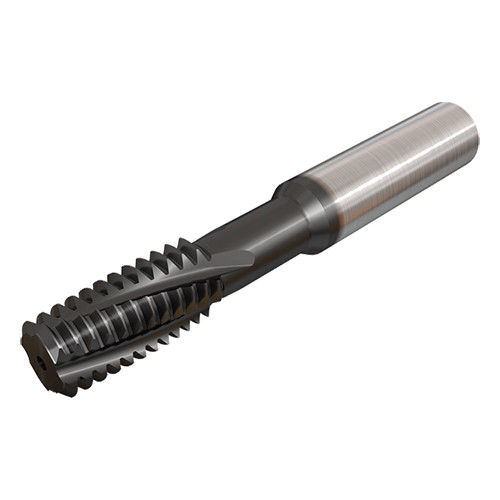

Thread Mill; >=0.472 - 20 ; 0.394″ Shank Dia. × 2.874″ OAL ; Carbide ; TiAlN ; IC908
| Thread Size | >=0.472 | Application | | Internal Thread Milling | |
| Threads per Inch (TPI) | 20 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Usable Length (LU) | 1.201″ |
| Cutting Diameter (DC) | 0.394″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.874″ | Grade | IC908 |
| Flute Count (NOF) | 4 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 0.701″ |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Solid carbide endmills with internal coolant holes and a reduced diameter neck. Used for deep internal, large pitch UN profile threading (up to 3D), on medium and large thread diameters. | Country of Origin | Israel |
Shipping Info
Package Weight
0.165
