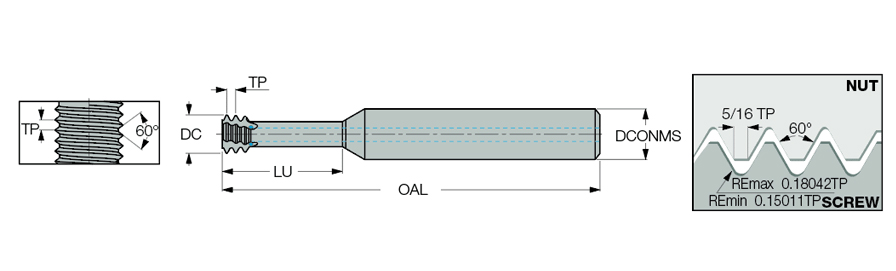

| Thread Pitch (TP) | 1.27 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | UNJC |THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Usable Length (LU) | 0.6299″ |
| Cutting Diameter (DC) | 0.193″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.283″ | Grade | IC908 |
| Flute Count (NOF) | 3 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | External | Depth of Cut Maximum (APMX) | 0.1276″ |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | NJ60 |
Product Features

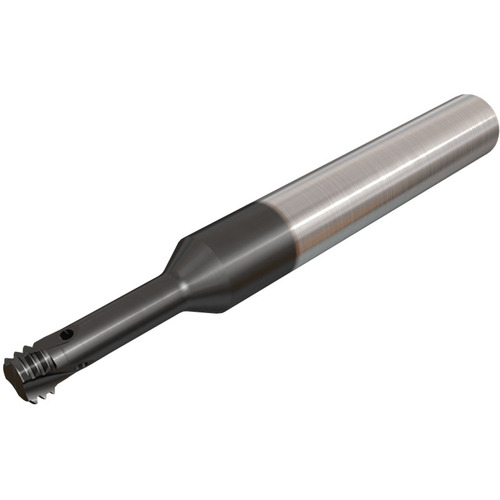

| Family Description | Small diameter short solid carbide UNJ-type profile threading endmills with coolant holes directed to the cutting edges. Used for internal J-type thread length of up to 2.5xD in the aerospace industry and for other applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.057
