MTECZ 1009C20 1.75ISO IC908
Thread Mill; M12 × 1.75 mm ; 0.394″ Shank Dia. × 2.874″ OAL ; Carbide ; TiAlN ; IC908

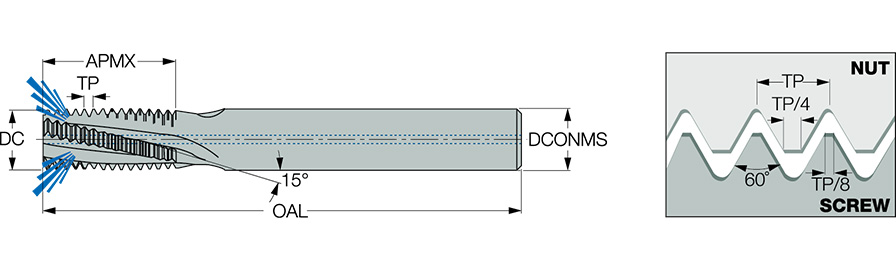

| Thread Size | M12 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.75 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | MC |MF |THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.354″ | Grade | IC908 |
| Overall Length (OAL) | 2.874″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 0.791″ |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | |
Product Features
| Family Description | Solid carbide internal threading endmills with coolant holes located in the flutes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.157
