| Thread Pitch (TP) | 1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | MF |THFT | | Flute Helix Angle (FHA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.236″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.283″ | Grade | IC908 |
| Flute Count (NOF) | 3 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 0.492″ |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
Product Features

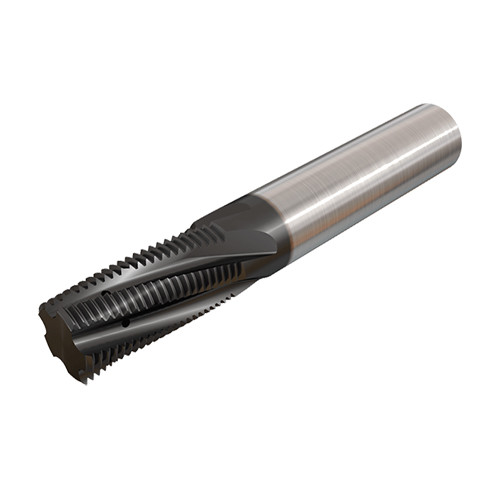

| Family Description | Solid carbide internal threading endmills with coolant holes located in the flutes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.055
