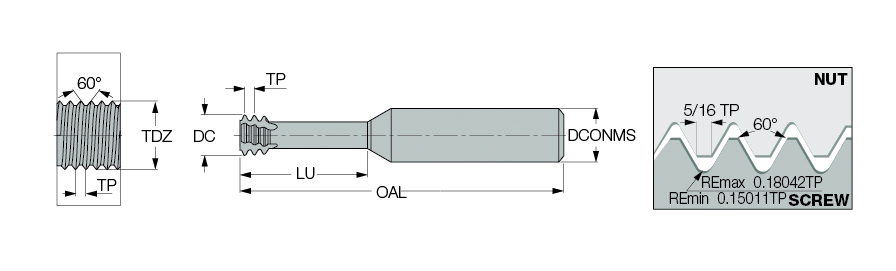

| Thread Size | M20 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 2.5 mm | Cutting Edge Material | Carbide |
| Thread Standard | THFT | | Usable Length (LU) | 1.69″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.591″ | Grade | IC908 |

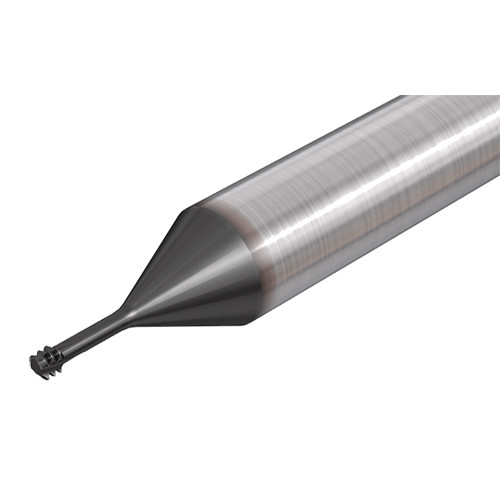

| Overall Length (OAL) | 4″ | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 5 | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | |
Product Features
| Family Description | Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread. | Country of Origin | Israel |
Shipping Info
Package Weight
0.540
