| Threads per Inch (TPI) | 27 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Standard | NPTF |THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 7.6 mm | Measurement Type | Metric |
| Overall Length (OAL) | 64 mm | Grade | IC908 |
| Flute Count (NOF) | 3 | Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 10.8 mm |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | NPTF60 |
Product Features

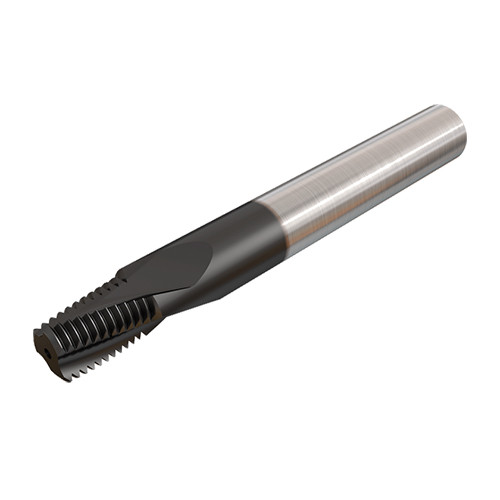

| Family Description | Solid carbide threading endmills with coolant holes, for external or internal NPTF thread profile. | Country of Origin | Israel |
Shipping Info
Package Weight
0.097
