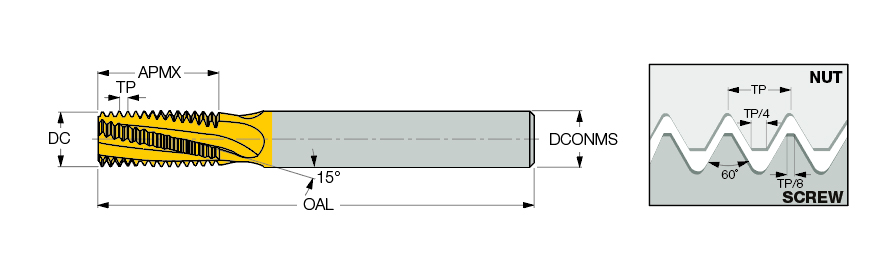

| Thread Pitch (TP) | 1.27 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 20 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | UNEF |THFT | | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 12 mm | Grade | IC908 |
| Overall Length (OAL) | 84 mm | Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 5 | Depth of Cut Maximum (APMX) | 27.3 mm |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Solid carbide threading endmills used for internal UN thread profile. | Country of Origin | Israel |
Shipping Info
Package Weight
0.287
