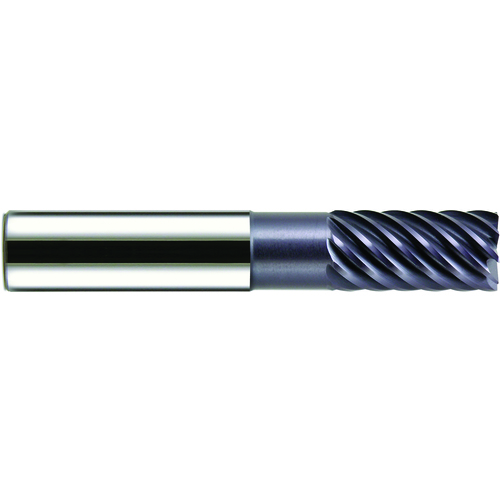

1/4″ × 1/4″ × 3/8″ × 2″ 9 Flute Single End Carbide HPE High Performance End Mill Center Cutting End Mill-nACo Series/List #5999
SQ End Mill; 1/4″ Dia. × 3/8″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 9 FL ; 3/8″ LBS ; Carbide ; AlTiSiN ; Series 5999
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3/8″ | Tool Type | Single End |
| Overall Length (OAL) | 2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiSiN | Style | HPE Ultra-High Performance End Mills |
| Flute Count (NOF) | 9 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | Variable | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5999 |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Weight
0.05
