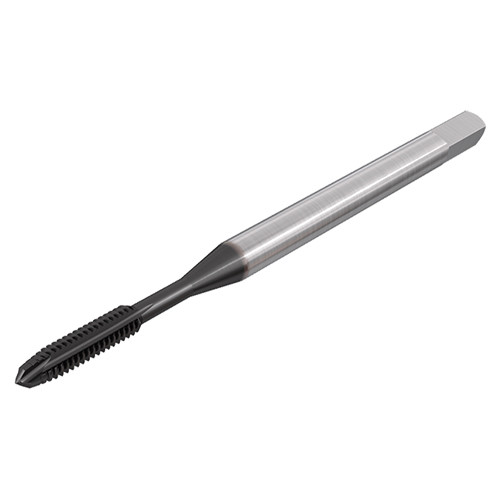

TPG M-14X2.0-W HE

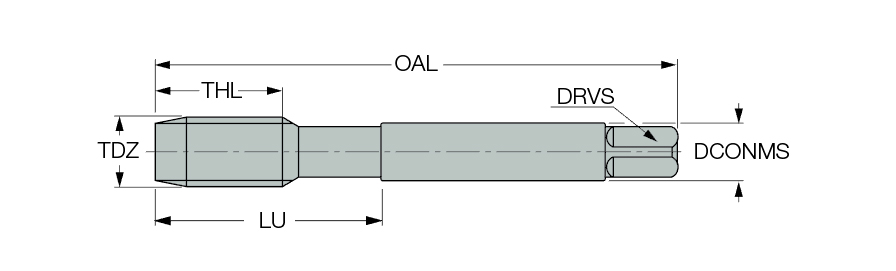

| Thread Diameter Size (TDZ) | M14 | Cutting Edge Material | HSS |
| Thread Pitch (TP) | 2 mm | Coating | Uncoated |
| Thread Standard | THFT | | Drive Size (DRVS) | 0.354″ |
| Overall Length (OAL) | 4.331″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 1.024″ | Grade | HE |
| Usable Length (LU) | 1.73″ | Thread Size | M14 × 2 |
| Connection Diameter Machine Side (DCONMS) | 0.433″ | Body Material | HSS |
| Flute Count (NOF) | 3 | Thread Form Type (THFT) | M60 |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
Product Features
| Family Description | HSS-E 5% Co right-hand 40° spiral flute machine taps according to DIN 13 for ISO metric coarse threads on steel with good machinability. | Country of Origin | Israel |
Shipping Info
Package Weight
0
