IFP 1461-SPADE IQ IC908
Drill Head; 1.461″ Dia. ; 140 Degrees ; IC908 ; Carbide ; TiAlN

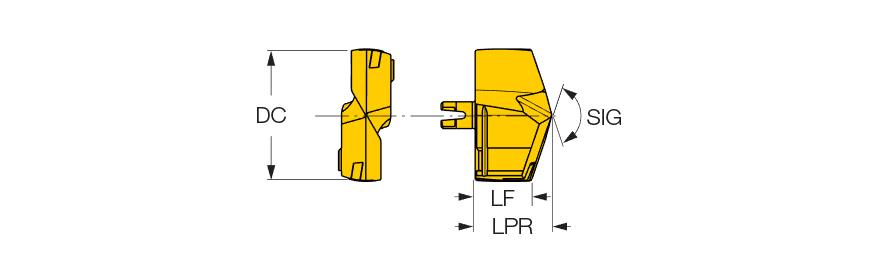

| Cutting Diameter (DC) | 1.461″ | Functional Length (LF) | 0.597″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Drilling | | Measurement Type | Inch |
| Grade | IC908 | Point Angle (SIG) | 140 Degrees |
| Protruding Length (LPR) | 0.819″ | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 37.0 | Body Material | Carbide |
Product Features
| Family Description | Exchangeable DFN drill heads for machining ISO P, ISO M and high temp. alloys (ISO S) materials | Country of Origin | Israel |
| Remarks | Intermediate sizes can be supplied on request Before using IFP geometry inserts with a drill above 5xD ratio, a pre-hole should be prepared by using a DFN 1.5xD to guide the drill (an endmill can be used) |
Shipping Info
Package Weight
99
