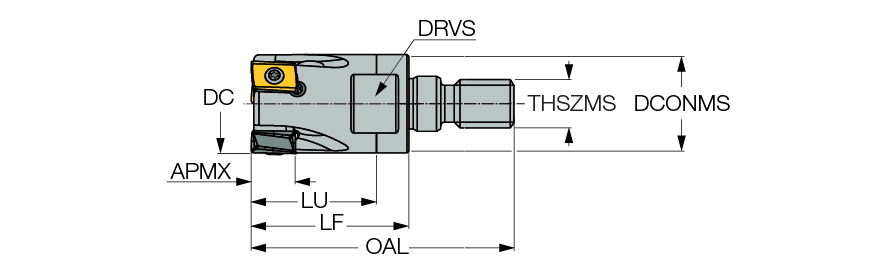

T490 ELN D16-2-M10
Indexable End Mill; 16 mm Dia. × 8 mm Max Depth × 18 mm Shank Dia. × 50 mm OAL × 22 mm LU ; 2 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 16 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 16 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M10 |
| Cutting Item Count (CICT) | 2 | Drive Size (DRVS) | 12.7 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Usable Length (LU) | 22 mm |
| Overall Length (OAL) | 50 mm | Flute Count (NOF) | 2 |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | T490 LNMT 0804PNR | Measurement Type | Metric |
| Weight of Item (WT) | 0.04 Kg | Body Material | Steel |
| Functional Length (LF) | 30 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Family Description | HELITANG, 90° endmills with a FLEXFIT threaded adaptation carrying tangentially clamped inserts with 4 helical cutting edges. | Country of Origin | Israel |
| Remarks | For adaptation, click on "More Info" When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter |
Shipping Info
Package Weight
0.181
