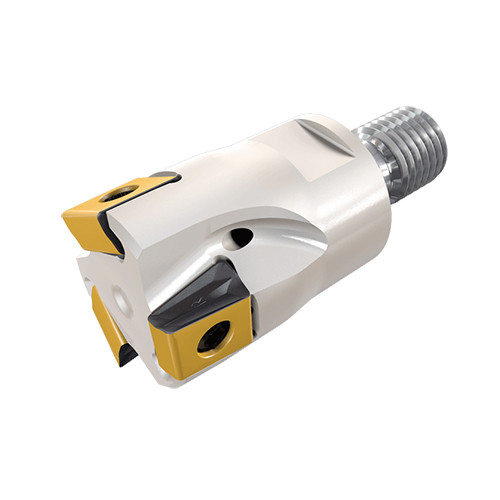

T490 ELN D25-4-M12
Indexable End Mill; 25 mm Dia. × 8 mm LOC × 21 mm Shank Dia. × 50 mm OAL ; 4 FL ; 90 Degrees
| Cutting Diameter (DC/DCX) | 25 mm | Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 25 mm | Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Cutting Item Count (CICT) | 4 | Drive Size (DRVS) | 17 mm |
| Depth of Cut Maximum (APMX) | 8 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 21 mm | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | T490 LNMT 0804PNR | Measurement Type | Metric |
| Weight of Item (WT) | 0.08 Kg | Body Material | Steel |
| Functional Length (LF) | 28 mm | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Family Description | HELITANG, 90° endmills with a FLEXFIT threaded adaptation carrying tangentially clamped inserts with 4 helical cutting edges. | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.260
