| Cutting Diameter (DC) | 0.313″ | Cutting Edge Material | Carbide |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Application | | Chamfering | Drilling | | Insert Thickness (S) | 0.181″ |
| Grade | IC08 | Point Length (PL) | 0.04645″ |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Protruding Length (LPR) | 0.181″ | Coating | Uncoated |
| Insert Seat Size Code (SSC) | 7.0 | Body Material | Carbide |
| Functional Length (LF) | 0.135″ |
Product Features

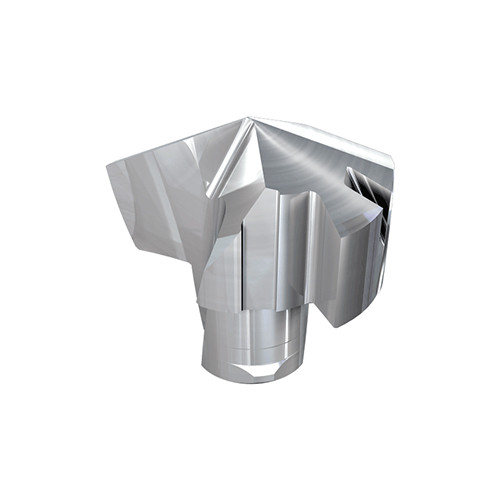

| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO N materials. The drill head is designed with a sharp cutting edge and polished rake face, available in increments of .004″ | Country of Origin | Israel |
| Remarks | The drill is manufactured with a sharp cutting edge and polished flutes |
Shipping Info
Package Weight
0.018
