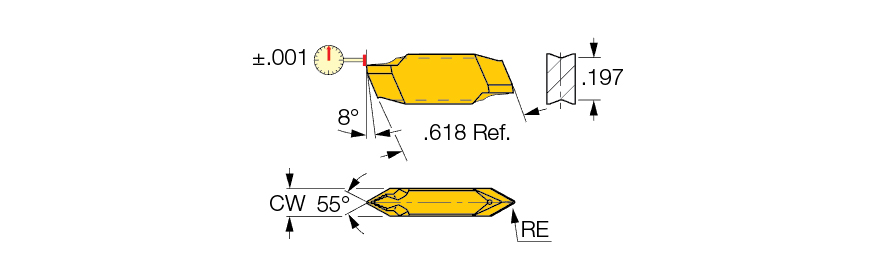

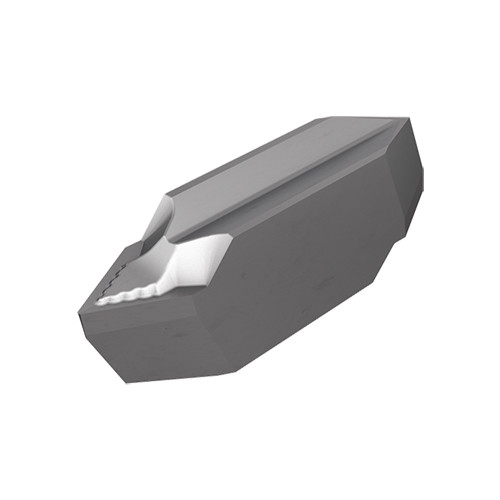

TIPI 3.4WT-0.10 IC08
| Thread Standard | THFT | | Thread Pitch Maximum (TPX) | 3.18 mm |
| Corner Radius (RE) | 0.004″ | Cutting Edge Length (L) | 0.618″ |
| Cutting Width (CW) | 0.134″ | Profile Included Angle (PNA) | 55 Degrees |
| Grade | IC08 | Tool Type | Groove-Turn Precision Inserts |
| Coating | Uncoated | Threads per Inch Maximum (TPIX) | 27 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 8 |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Application | | Threading (Int.) | | Body Material | Carbide |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Thread Form Type (THFT) | VP55 |
| Thread Pitch Minimum (TPN) | 0.95 mm |
Product Features
| Family Description | Double-ended internal threading inserts with a 55° partial profile and a chipformer for .787″ min. bore diameter. | Country of Origin | Israel |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance Pitch max 0.187xD, TPI min D/5.25 D=Diameter of thread (pitch max<=CW) |
Shipping Info
Package Weight
0.010
