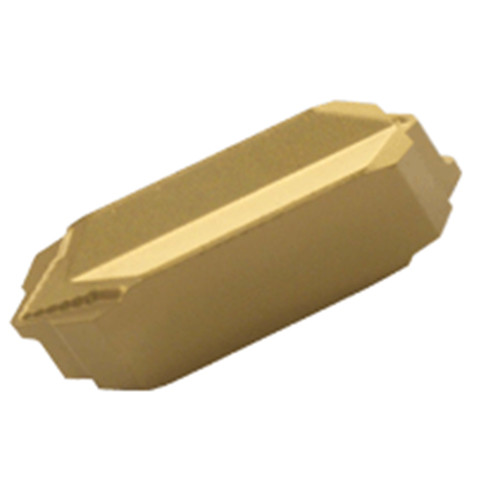

TIP 2P14-BSPT IC08
| Thread Standard | THFT | | Application | | Threading (Ext.) Groove Turn T | |
| Threads per Inch (TPI) | 14 | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0.009″ | Cutting Edge Length (L) | 0.602″ |
| Cutting Width (CW) | 0.094″ | Profile Included Angle (PNA) | 55 Degrees |
| Grade | IC08 | Tool Type | Groove-Turn Precision Inserts |
| Coating | Uncoated | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Thread Form Type (THFT) | BSPT55 |
Product Features
| Family Description | Precision ground, BSPT (British Standard Pipe) full profile, double-ended external threading inserts with a chipformer. | Country of Origin | Israel |

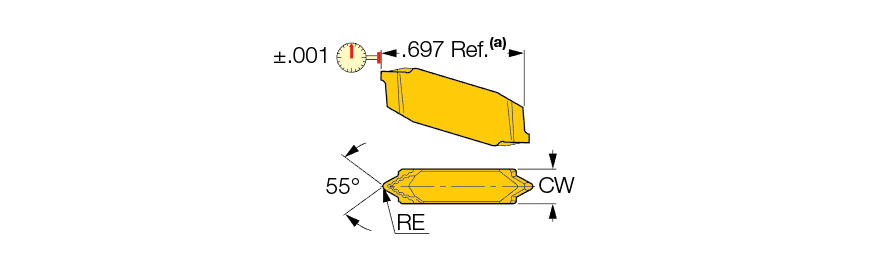

| Remarks | (a) TIP inserts are .063 longer than GIP in the same pocket Toolholder seat needs to be modified according to insert profile to ensure clearance |
Shipping Info
Package Weight
0.009
