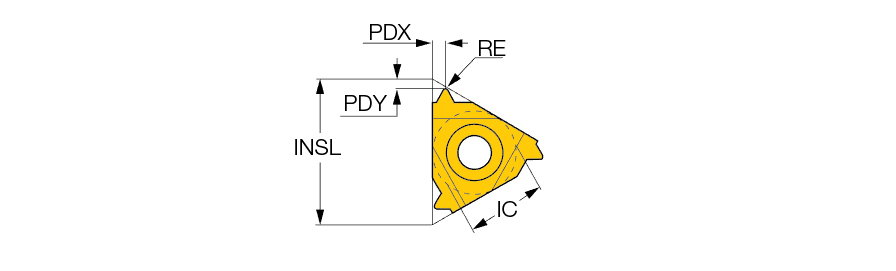

16ER 28 BSPT IC250
Laydown Threading Insert ; 28 TPI ; 0.649″ Length ; 3/8″ IC ; THFT | ; Carbide ; IC250 ; TiCN+TiN
| Thread Standard | THFT | | Application | | External Threading | |
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 28 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0043″ | Measurement Type | Inch |
| Grade | IC250 | Body Material | Carbide |
| Coating | TiCN+TiN | Thread Form Type (THFT) | BSPT55 |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0236″ |
Product Features
| Family Description | External BSPT (British standard pipe), full profile laydown threading inserts. ER/L - Ground periphery and rake, ERB - With a chipformer and peripherally ground, ERM - With a chipformer. Application: steam, gas and water pipes. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info For threading between walls use insert TIP-BSPT |
Shipping Info
Package Weight
0.015
