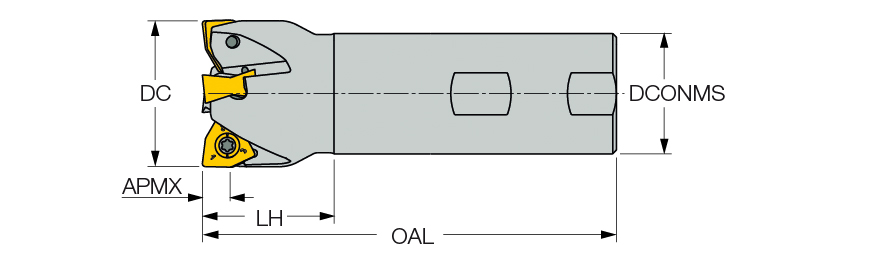

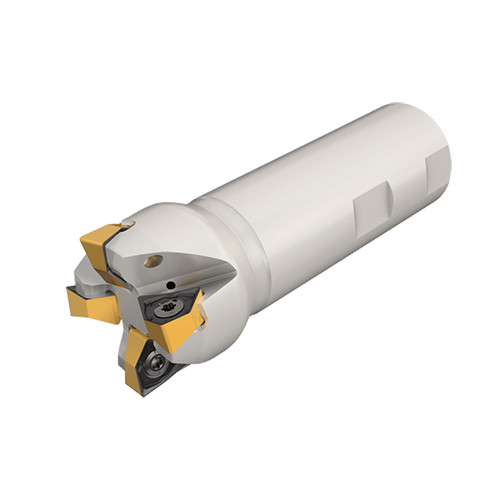

H690 EWN D032-03-W32-R07
Indexable End Mill; 32 mm Dia. × 7 mm LOC × 32 mm Shank Dia. × 110 mm OAL ; 3 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 32 mm | Head Length (LH) | 48 mm |
| Cutting Diameter (DC) | 32 mm | Functional Length (LF) | 74 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 7 mm | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 110 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | H690 WNMU 070512PNTR | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 0.56 Kg |
Product Features
| Family Description | 90° endmills carrying H690 WNMU 0704 double-sided trigonal inserts with 6 helical cutting edges. | Country of Origin | Israel |
| Remarks | Insert clamping screw must be lubricated every indexing For adaptation, click on More Info |
Shipping Info
Package Weight
1.462
