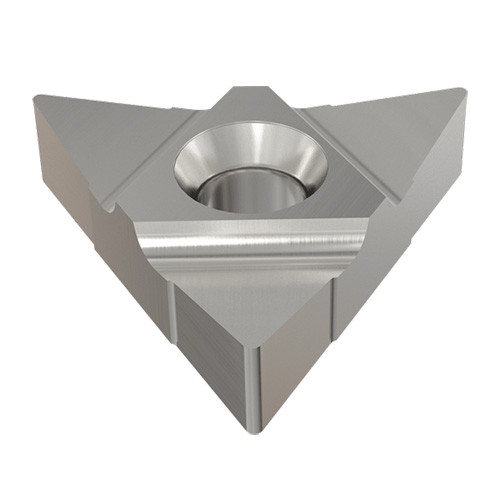

27UEIRL U 60 IC50M
Laydown Threading Insert ; 1.083″ Length ; 5/8″ IC ; Carbide ; IC50M ; Uncoated

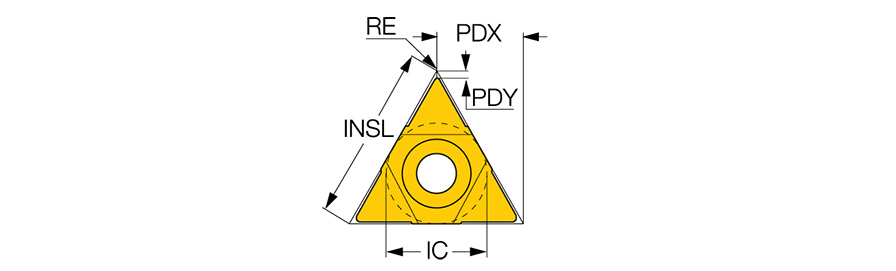

| Thread Standard | THFT | | Cutting Direction (HAND) | U-Type |
| Inscribed Circle Diameter (IC) | 5/8″ | Threads per Inch Minimum (TPIN) | 4 |
| Insert Length (INSL) | 1.083″ | Threads per Inch Maximum (TPIX) | 4.5 |
| Corner Radius (RE) | 0.0197″ | Tool Type | Threading Regular Inserts |
| Grade | IC50M | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | UN60 |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | | Profile Distance EY (PDY) | 0.0406″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | External laydown threading inserts with a 60° partial profile for general applications | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info |
Shipping Info
Package Weight
0.023
