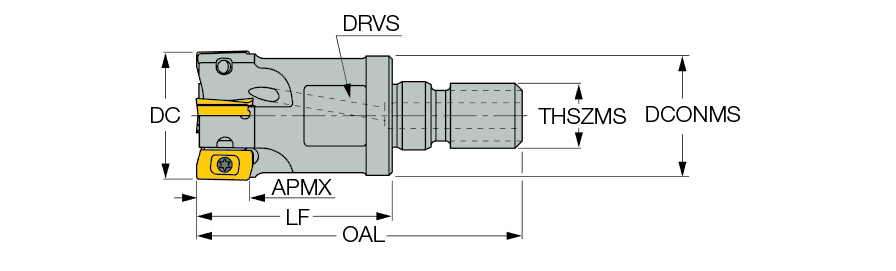

HP E90AN-D16-3-M10
| Cutting Diameter (DC/DCX) | 16 mm | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 16 mm | Tool Type | 90° Indexable End Mill |
| Cutting Item Count (CICT) | 3 | Connection Thread Nominal Size Machine Side (THSZMS) | M10 |
| Depth of Cut Maximum (APMX) | 7.7 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | 90° endmills with a FLEXFIT threaded adaptation carrying HELIPLUS HP ANKT 0702.. inserts. | Country of Origin | IL |
| Remarks | Insert tightening torque: 62 Nxcm For adaptation click on "More Info". |
Shipping Info
Package Weight
.1430
