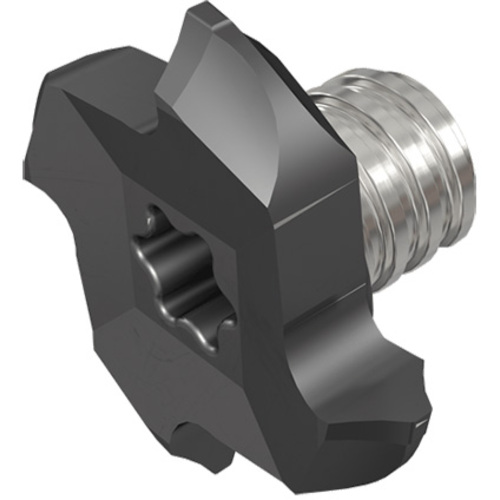

MM SS22M100Z2125-4T08 IC908
End Mill Head; 0.854″ Dia. × 0.496″ OAL ; 4 FL ; T08 ; Carbide ; TiAlN ; IC908
| Application | | Gear profile | | Grade | IC908 |

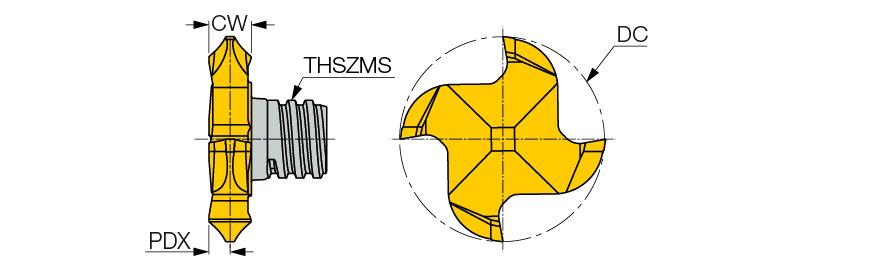

| Cutting Diameter (DC) | 0.854″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Tool Type | Solid chamfering endmills |
| Cutting Width (CW) | 0.177″ | Body Material | Carbide |
| Overall Length (OAL) | 0.496″ | Connection Code Machine Side (CCMS) | MultiMaster |
Product Features
| Family Description | Interchangeable solid carbide milling heads with MM threaded connections for milling involute spline shafts according to DIN 5480 class 9 . Pressure angle 30° . involute gear Profile for 1 and 1.5mm module sizes and 17-25 teeth range. | Country of Origin | Israel |
| Remarks | Tightening torque 130 Lbfxin Do not apply lubricant to the threaded connection. For clamping instructions, click on More Info |
Shipping Info
Package Weight
0.053
