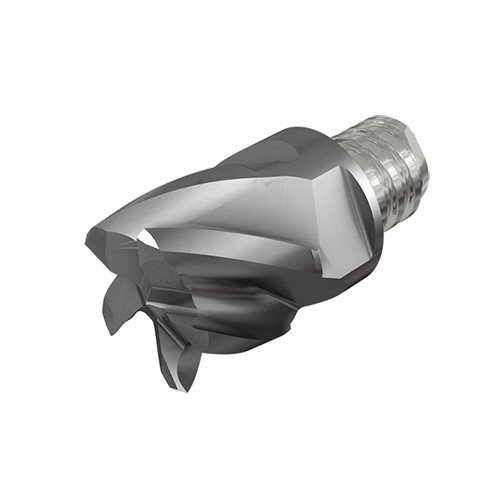

MM EC080H05C3-5T05CF IC908
End Mill Head; 0.315″ Dia. × 0.197″ LOC × 0.303″ Shank Dia. × 0.673″ OAL ; 5 FL ; T05 ; Carbide ; TiAlN ; IC908
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Grade | IC908 |

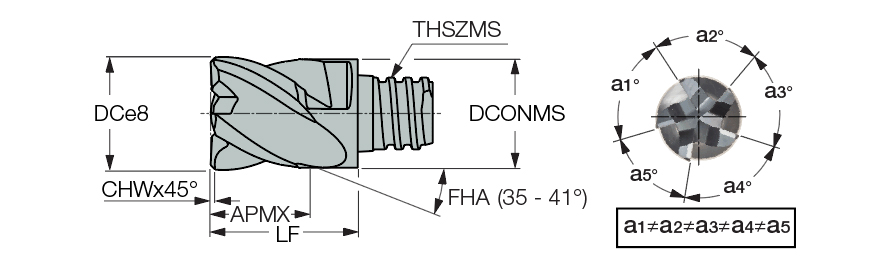

| Cutting Diameter (DC) | 0.315″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 5 | Corner Chamfer Width (CHW) | 0.012″ |
| Corner Radius (RE) | 0″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Maximum Feed per Tooth (fz(max)) | 0.0035 ″/tooth |
| Cutting Diameter Maximum (DCX) | 0.315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.197″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.303″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Functional Length (LF) | 0.394″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Overall Length (OAL) | 0.673″ |
Product Features
| Family Description | Interchangeable carbide heads. 5 flute with different helix (35 - 41°) and variable pitch for roughing and finishing operations. High material removal rates CHATTERFREE, for machining high temperature alloys such as titanium and inconel. | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
14
