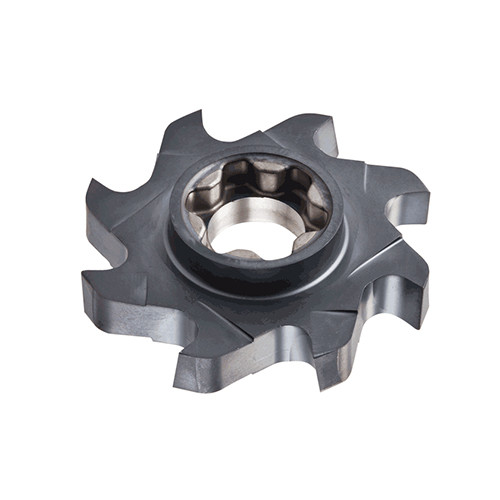

SD D40-3.5-R0.4SP13 IC908
End Mill Head; 39.7 mm Dia. × 13 mm Max Depth × 13 mm Shank Dia. × 7.3 mm OAL ; 10 FL ; Carbide ; TiAlN ; IC908
| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Grade | IC908 |

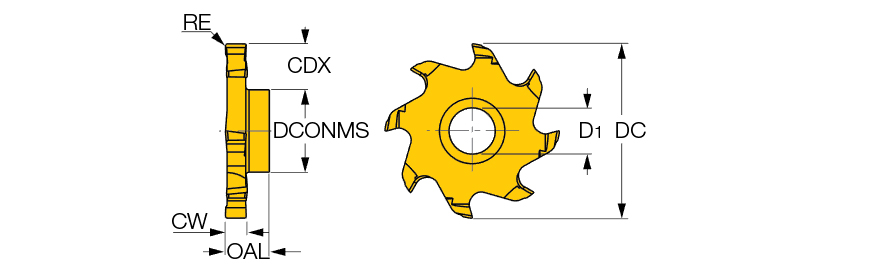

| Cutting Diameter (DC) | 39.7 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 7.5 mm |
| Flute Count (NOF) | 10 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.4 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 13 mm | Cutting Edge Material | Carbide |
| Cutting Width (CW) | 3.5 mm | Tool Type | Solid "T" slot cutters |
| Connection Diameter Machine Side (DCONMS) | 13 mm | Body Material | Carbide |
| Overall Length (OAL) | 7.3 mm |
Product Features
| Family Description | Interchangeable solid carbide T-Slot milling heads. | Country of Origin | Israel |

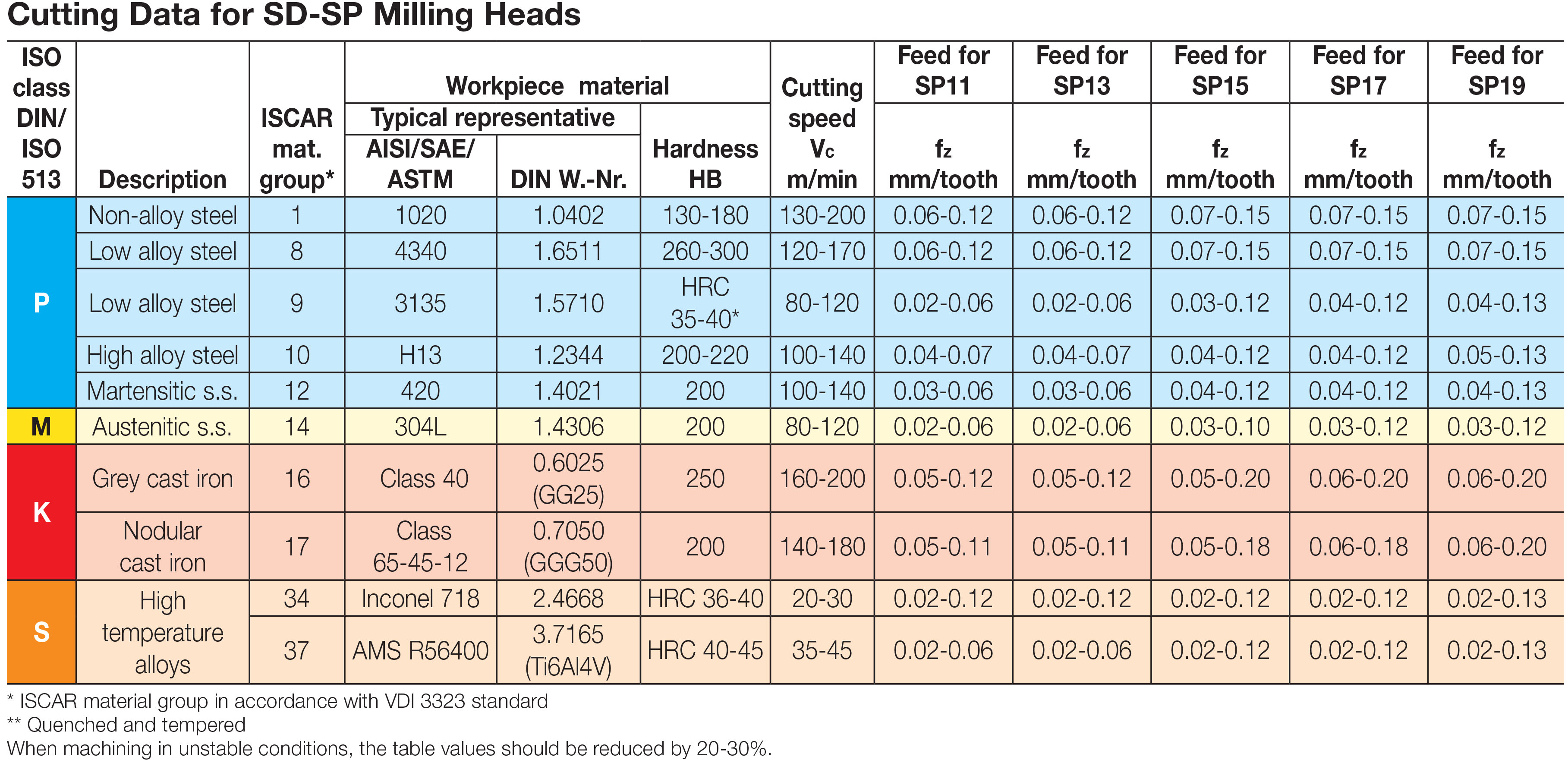

| Remarks | For machining recommendations, click on More Info |
Shipping Info
Package Weight
0.117
