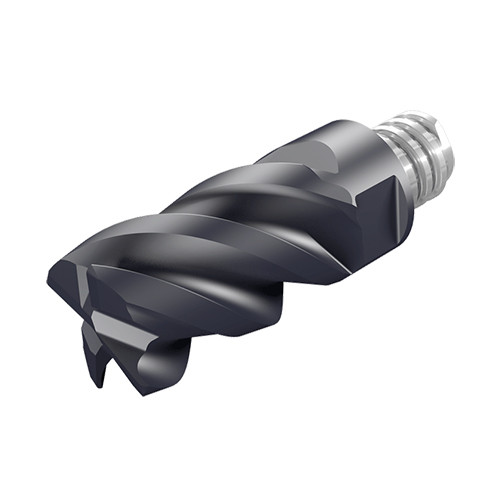

MM EC120B18R000-4T08 IC608
End Mill Head; 12 mm Dia. × 18 mm LOC × 11.7 mm Shank Dia. ; 4 FL ; T08 ; Carbide ; AlTiCrSiN ; IC608
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC608 |
| Cutting Diameter (DC) | 12 mm | Coating | AlTiCrSiN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.11 mm/tooth |
| Corner Radius (RE) | 0 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 18 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 11.7 mm | Body Material | Carbide |
| Functional Length (LF) | 27 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 46.5 Degrees | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
Product Features
| Family Description | Interchangeable solid carbide heads with variable pitch and 1.5xD flute lengths for CHATTER-FREE roughing and finishing operations. High material removal rates | Country of Origin | Israel |
| Remarks | For tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
0.091
Related Documentation
- Maximum depth of cut (APMX) while milling full slot from solid material is 1xDC - Maximum width of cut for milling shoulder with APMX=1.5xDC is 0.3xDC - Reinforced Weldon shanks are strongly recommended - In cases of unfavorable machining conditions, the cutting data should be decreased by 20%-30%
